D1X is design for the High-end Home system to provide the best USB&Network output. More the 6 Years High-end design X86 Board By ourself and be Intel motherboard partner.D1X can support SAW OS(Customized windows OS) As an AMC Music Player , also support Diretta as X86 Network Bridge.

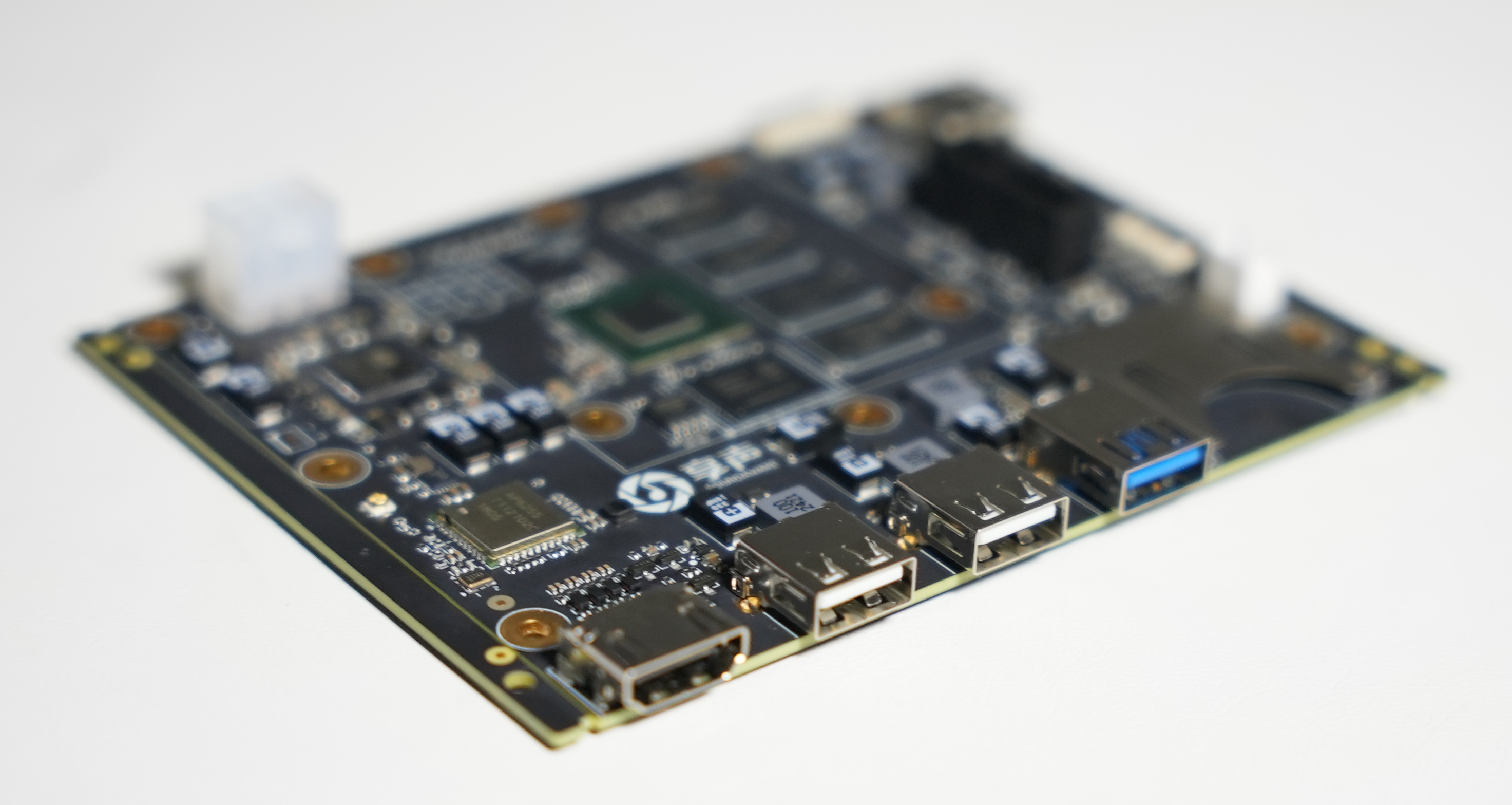

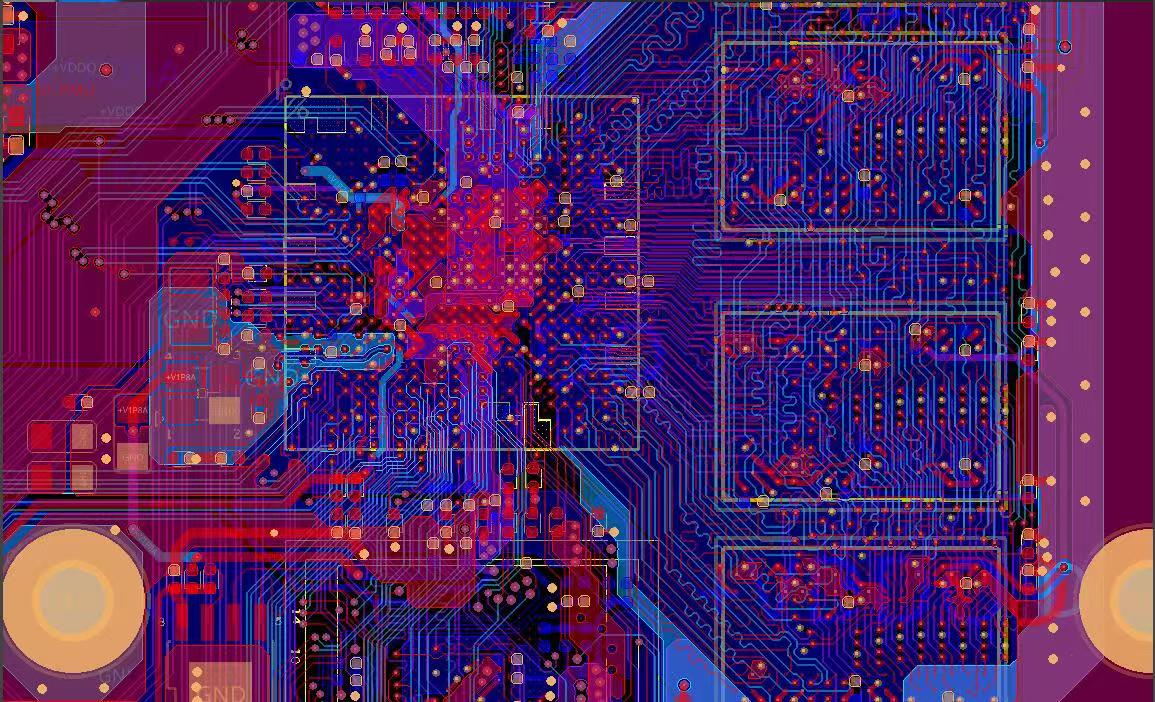

Hi-end-design X86 motherboard

ATX-like three-channels native power supply system

The 4V, 5V, and 12V (PCIe) triple-isolated DC power supply interface is specifically engineered to deliver fully linear, high-current, and ultra-low-noise power input.

Flagship-level Ultra-Low EMI design

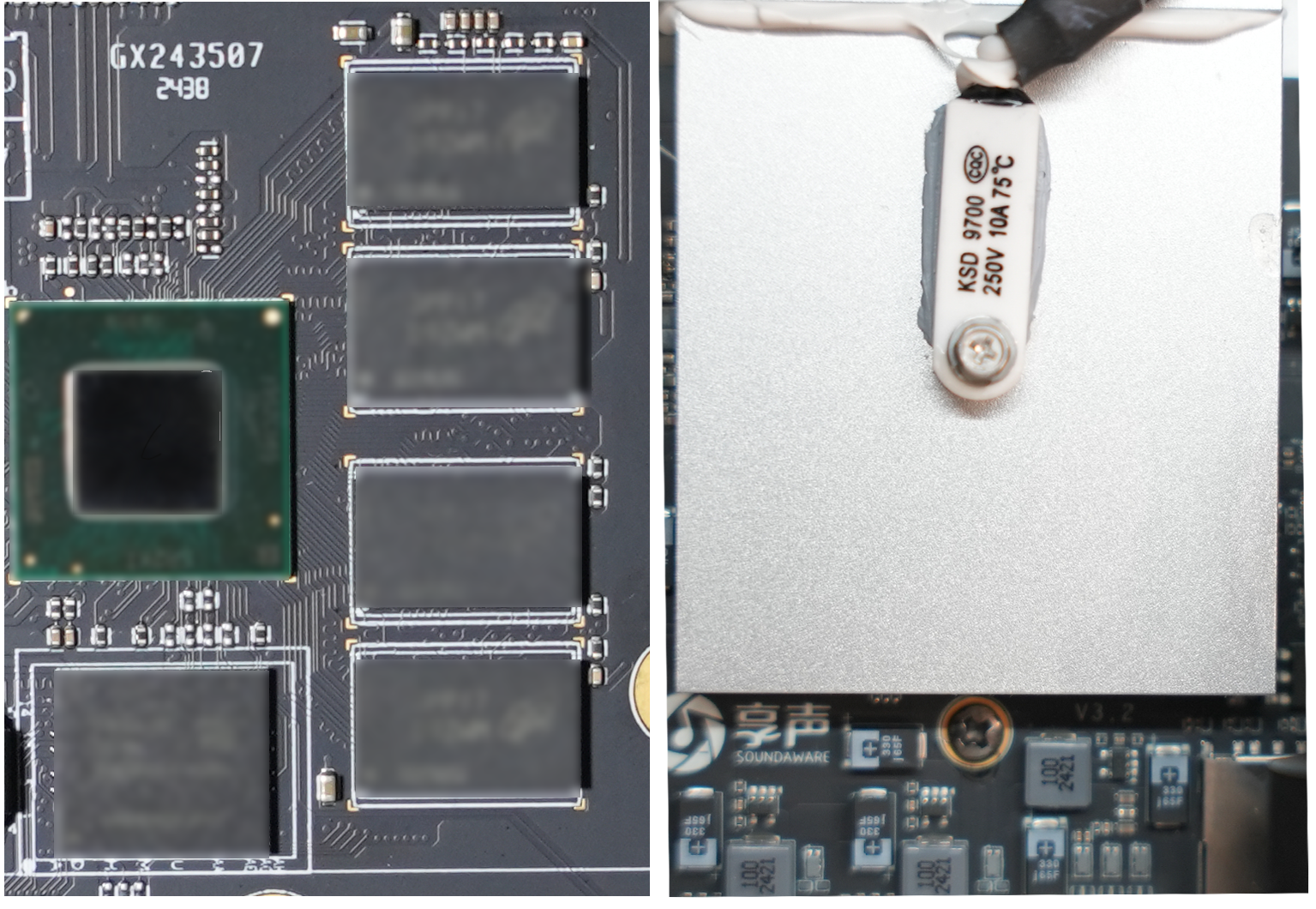

The DDR memory, HDD controller, and other high-radiation/high-speed communication components employ fully surface-mounted designs with compact solder placement. Utilizing thick aluminum shielding and multi-layer gold-plated PCBs, the system delivers comprehensive EMI protection. This ultra-low noise and EMI design achieves groundbreaking silence levels - a technological breakthrough already successfully implemented in Hi-Fi audio systems.

The industry's first to achieve deep optimization starting from 1.8V for low internal resistance.

1.8V, 3.3V, and 5V all achieve a resistance of ≤5 mΩ(100KHz) by utilizing reference-grade low internal resistance materials. This represents an industry benchmark with a ≤5 mΩ low internal resistance solution, ensuring ultra-low noise from I/O and power supply, high-frequency bandwidth, and ultra-fast response.

Reference level independent power supply design, each voltage level is still independently powered

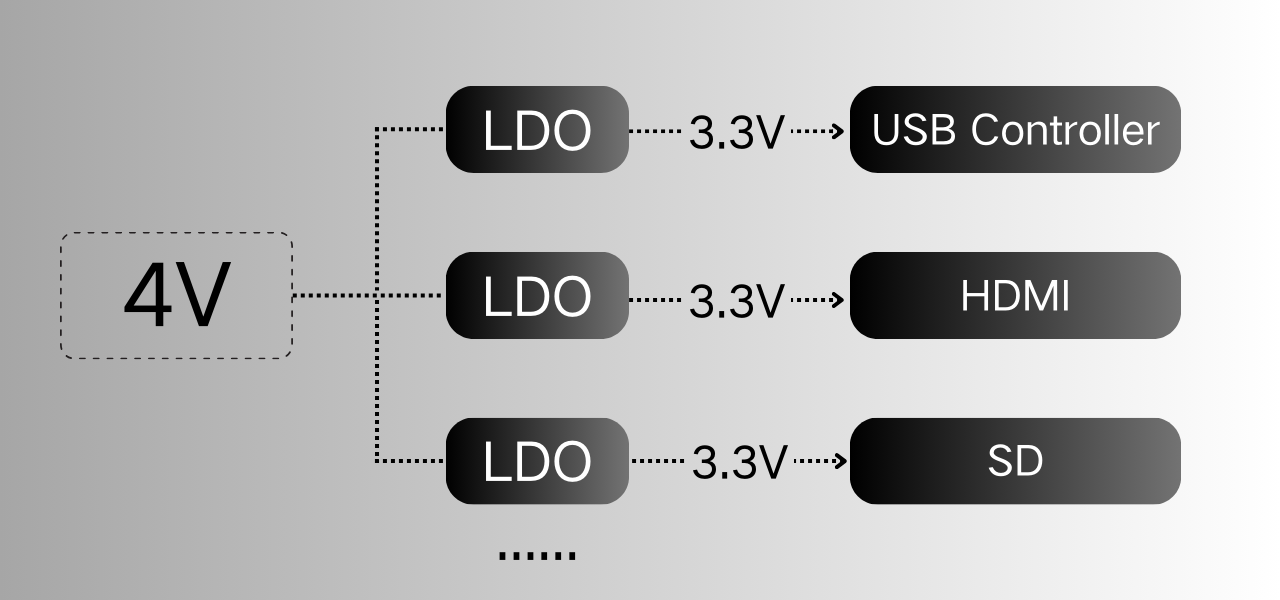

Starting from 1.8V, each power supply is separated as much as possible, with up to 5 channels for the 3.3V LDO HDMI, hard drives, SD, and others are all powered independently. Each USB has its own filtering and independent power circuitry to minimize external noise input as much as possible. The power supply achieves an ultra-low impedance of just 3 mΩ

Reference-level X86 CPU clock

An independent CPU with a ±1ppm TCXO high-precision clock system ensures that controllers such as HDMI, PCIe, USB, and SD receive high-precision clock support. Additionally, a luxurious 5 mΩ independent clock power supply system has been adopted, significantly enhancing sound detail and dynamics.

Independent USB audio output interface

The system incorporates second-order filtering circuitry and an ultra-low internal resistance design (≤5mΩ), paired with a dedicated isolated USB audio interface. The rear-panel reinforced mounting design significantly enhances USB port durability, ensuring reliable connectivity with audiophile-grade USB Hi-Fi cables.

Ultra-Low Power, Meeting Reference-Grade Audio Design Requirements

Under conditions where the hard drive is capable of smooth operation with SAW OS3.0 audio-specific and Diretta bridge systems, a fully fixed-frequency ultra-responsive design and a reference-level design with significant margin ensure that during normal DSD512 playback, power consumption is less than 20W. Ultra-Low power consumption and Ultra-Low thermal noise provide the foundation for a reference-level power supply system, which is also a core essential for high-quality sound.

Multi-layer high-speed redundant gold-plated design, all for high signal quality and low noise

Featuring multi-layer ultra-high-speed impedance control and redundant gold-plated PCB architecture, this no-compromise design prioritizes ultimate signal integrity and ultra-low noise performance above all else.

Powerful audio expansion interface, a HIFI designed PCIe, 3 USB 2.0 ports, one USB 3.0 port, and a dedicated clock power supply SD storage.

1.8V PCIe controller power supply is deeply optimized, with a ±1ppm TCXO audio clock, providing precise and ultra-low noise audio design for PCIe expansion. The motherboard also supports three USB 2.0 and one USB 3.0 expansion ports, as well as a clock and power optimized HDMI output interface.

Shut-off WIFI module based on HIFI design

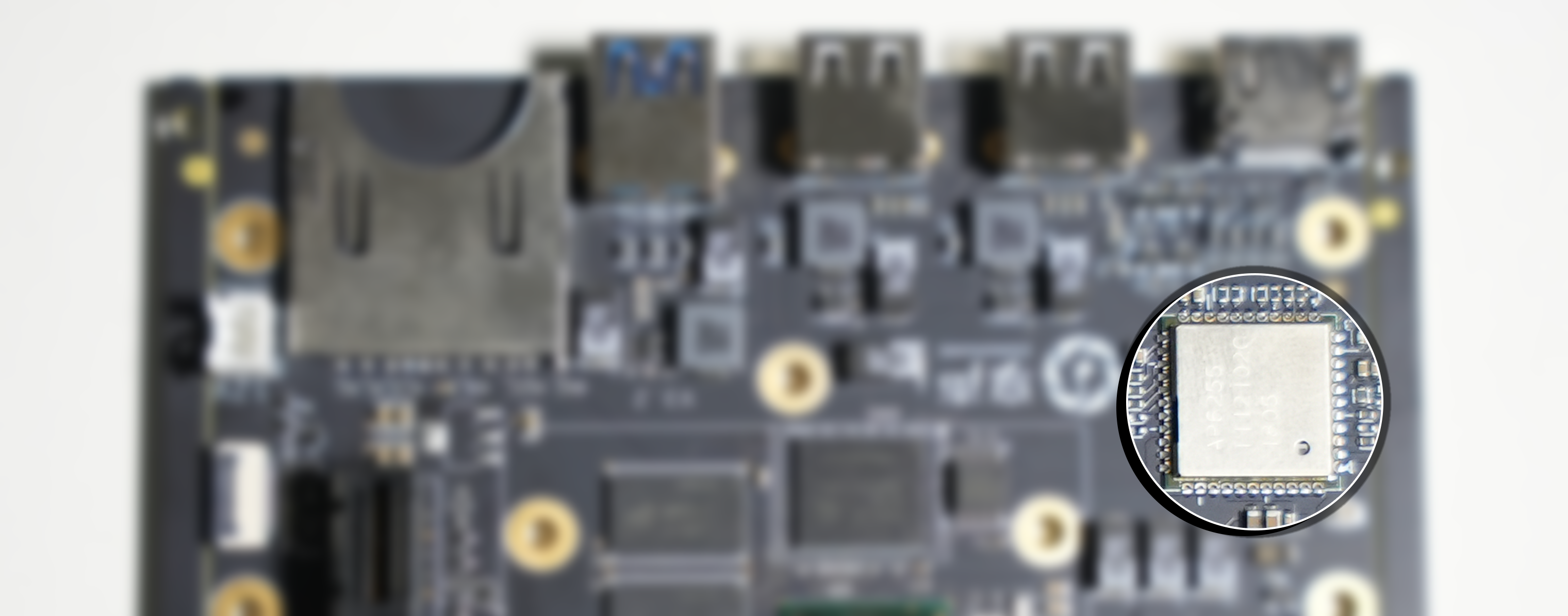

As a supplementary WIFI module, D1X still adopts a HIFI-grade design. It utilizes a CPU with a high-precision ±1ppm TCXO clock, an independent 3.3V LDO low-noise power supply, a fully shielded WIFI module, and an external antenna design. This reduces WIFI interference to the lowest level and supports soft shutdown within the system.

X86 platform, with superior system support, boasts a robust ecosystem for music apps

In addition to the audio-dedicated SAW OS 3.0 system and custom Diretta built into the official SOUNDAWARE products, the official version supports some Audio Linux system.

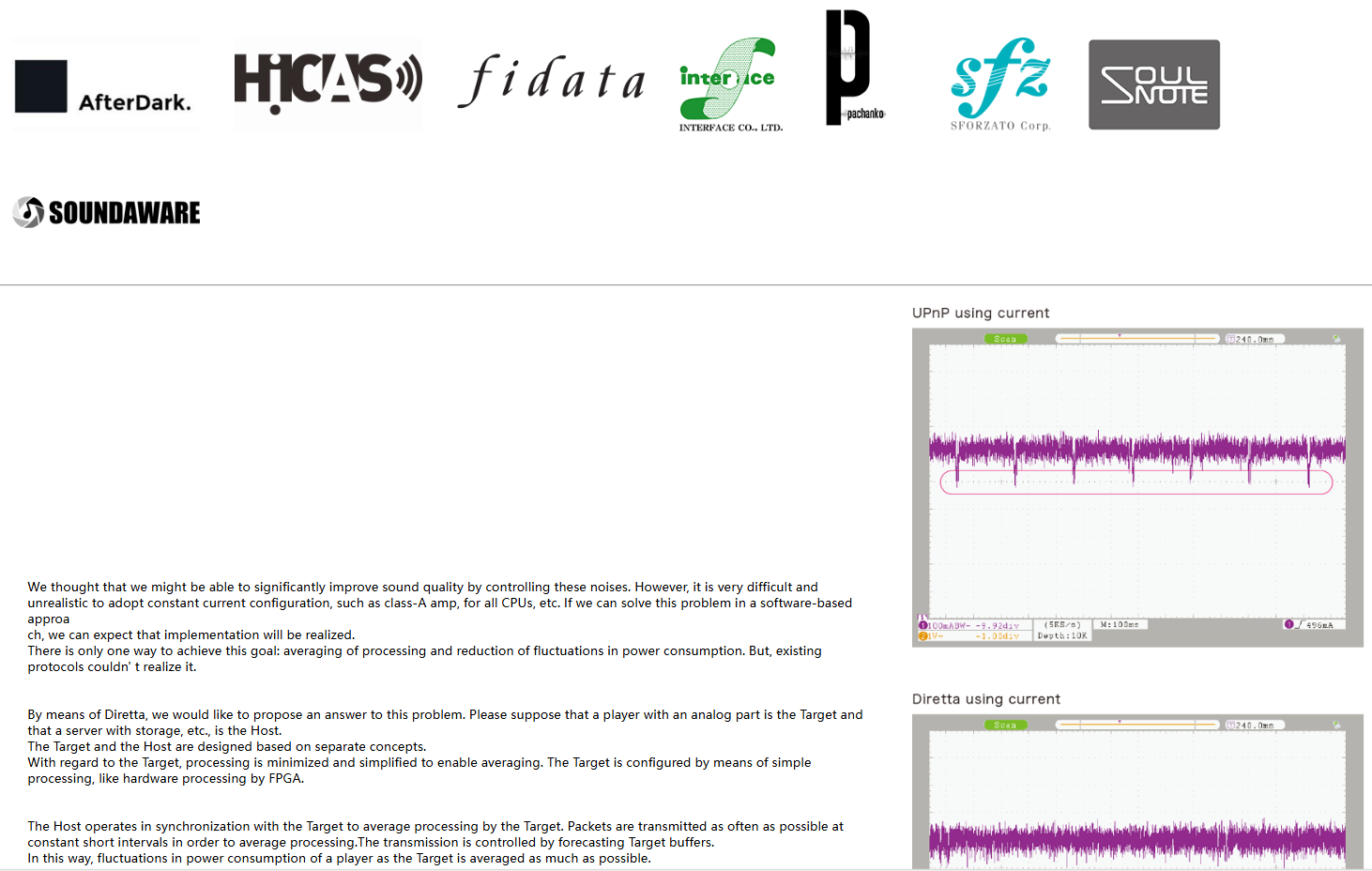

Diretta network bridge system

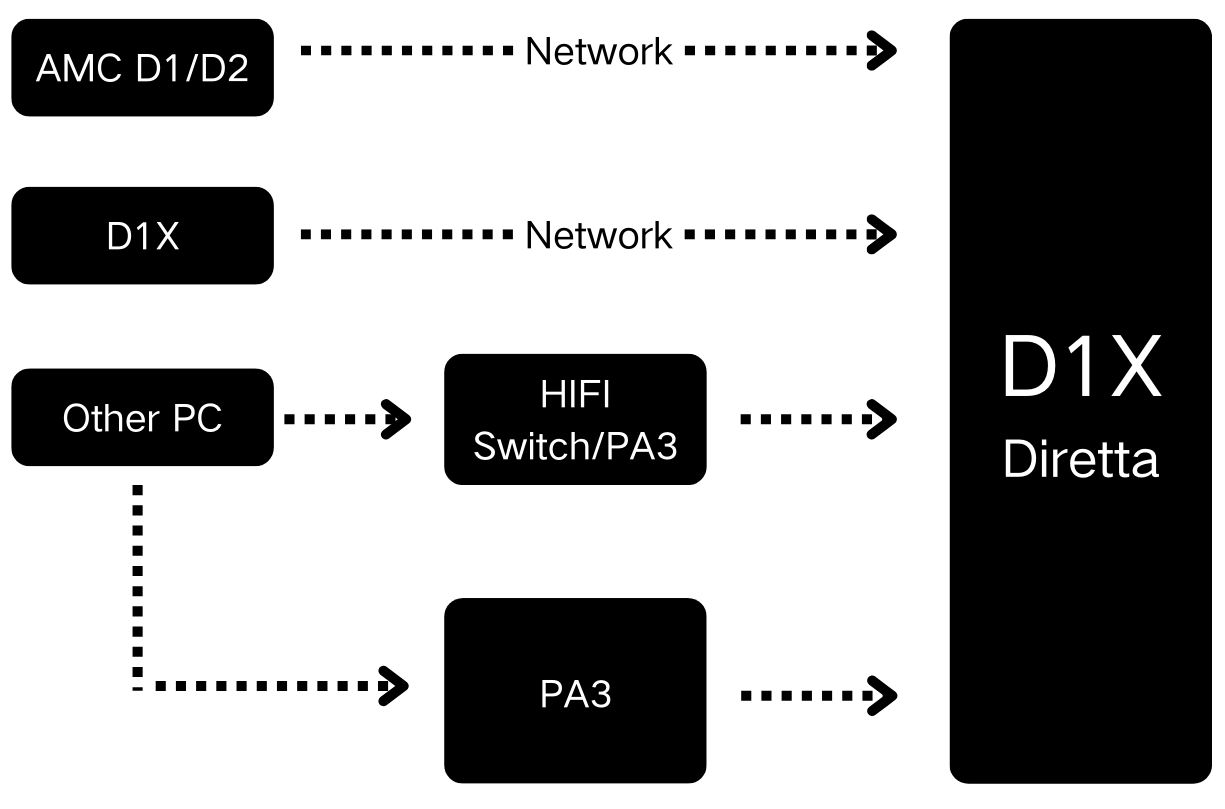

SOUNDAWARE has become an official partner of Diretta, and all D1X series products support the Diretta bridge system as a reference target, meanwhile, D1X with SAW OS 3.0 also supports the Diretta host for all Diretta bridge targets.

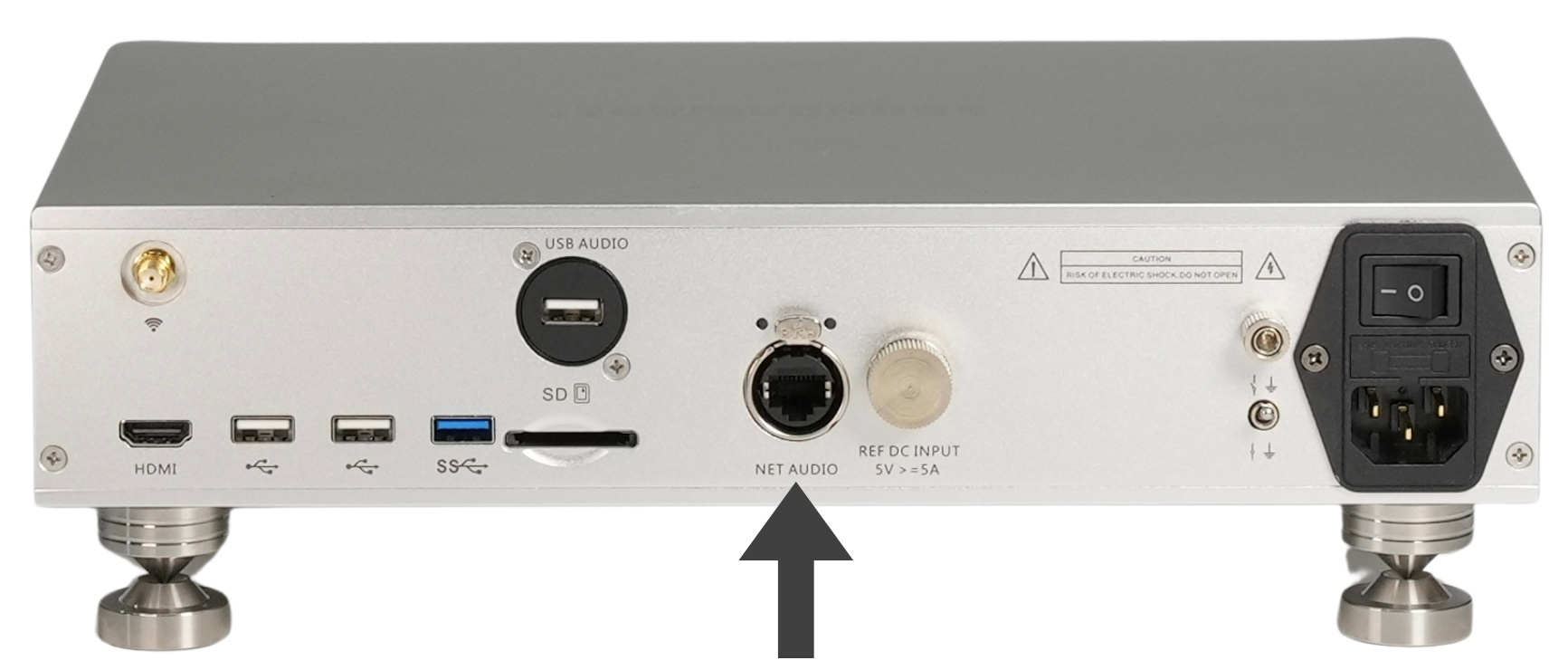

A PCIe network card that adopts reference-level design and materials

D1X adopts a high-performance PCIe Gigabit network chip, an independent high-speed, low-jitter network isolation transformer, and a Neutrik high-performance network socket. It utilizes a 7μV ultra-low noise power supply and performs 5 mΩ ultra-low noise internal resistance processing for each power supply of the network card chip, such as 1V, 1.8V, and 3.3V. It employs a ±1ppm TCXO high-precision, low-noise clock system and uses the same limited-edition reference materials as the DAM1 15TH, such as MKP capacitors and silver film capacitors.

7A Class High Current Built-in Full Linear Low Noise Main Power Supply

33uv level ultra-low noise power supply

The enhanced power supply, equipped with the LPX 2024 linear 7A charging module and high-performance filters, delivers a wider frequency range and improved performance in sound. Additionally, the 4V power supply features a low-noise, high-current design at the LT 33μV level, providing an independent power system for the CPU and I/O. It also extensively utilizes film capacitors, MKP capacitors, 5 mΩ capacitors, and other reference-grade materials identical to those used in the limited-edition DAM1 15TH.

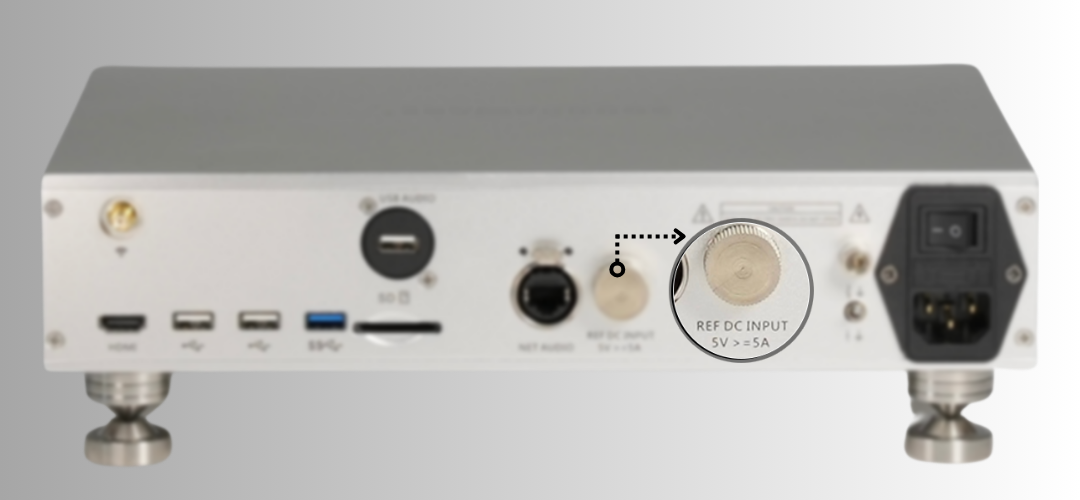

Supports external power with better performance, such as LPX 2024

The sound will reach a new level

Supports external high-end reference-level power inputs such as the LPX 2024 or PA1 15TH, which can elevate the sound quality to a higher level, offering better detail, dynamics, and improved density. It also allows for completely different sound styles through various DC cables.

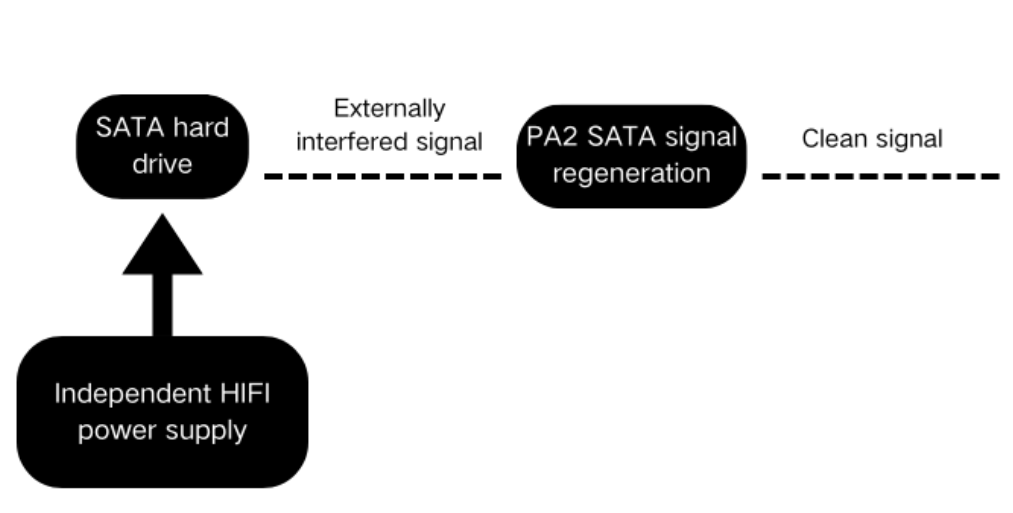

Customized edition built-in reference-grade PA2 SATA regeneration module

SATA hard drive system with an independent power supply

*Customized edition

The custom version is primarily designed for local and streaming playback users, featuring an integrated SATA signal regeneration PA2 function with reference-grade materials. It utilizes a high-frequency, high-response power system with reference-grade WIMA 10μF MKS4 capacitors and 5 mΩ components, along with a TCXO ±1ppm high-performance PA2 signal regeneration clock system, all on par with the reference-grade materials used in the DAM1 15TH. Additionally, it undergoes targeted tuning and optimization to achieve benchmark-level sound quality with the built-in hard drive.

*Customized edition

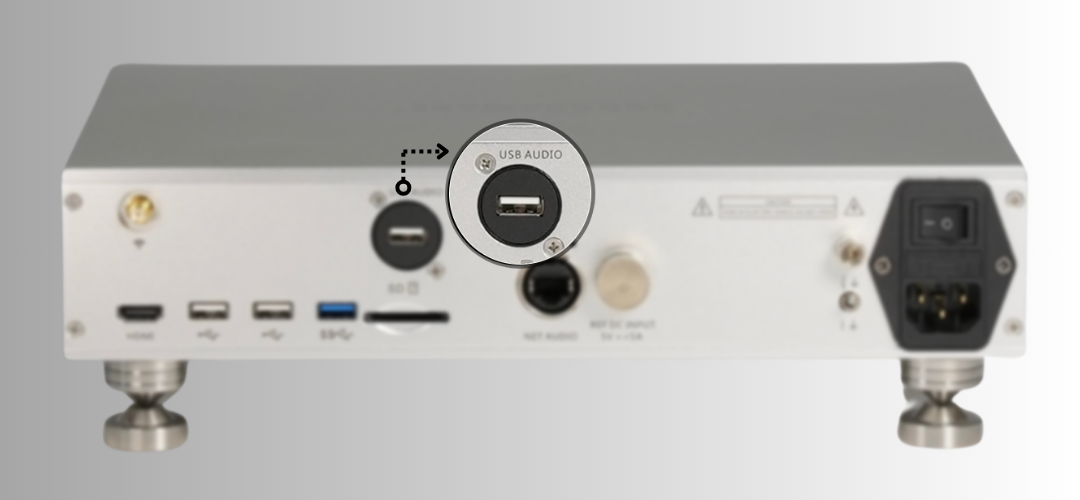

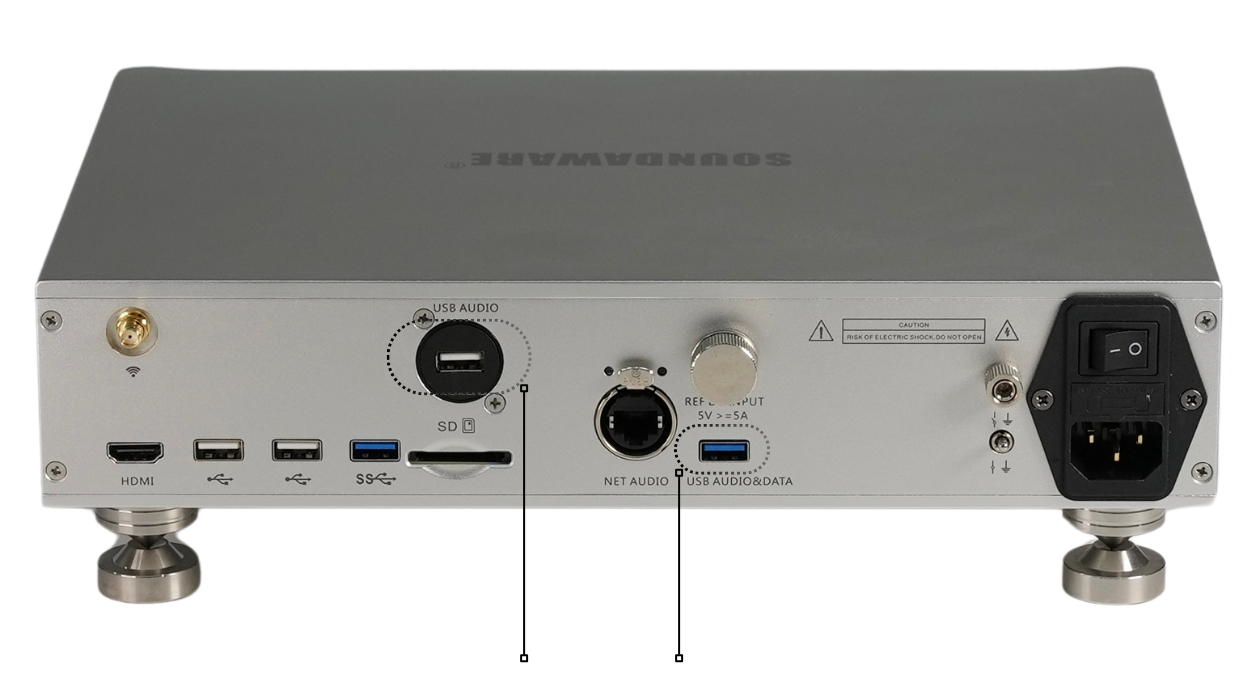

Add a reference-grade USB AUDIO module for PCIe expansion.

By enhancing the PCIe expansion capabilities, USB AUDIO directly outputs from PCIe, utilizing a high-performance, low-noise clock with ±1ppm precision and a power system fully optimized to 5 mΩ, making the two USB Audio outputs sound quality are better than standard edition.

Second-generation fully laminated design

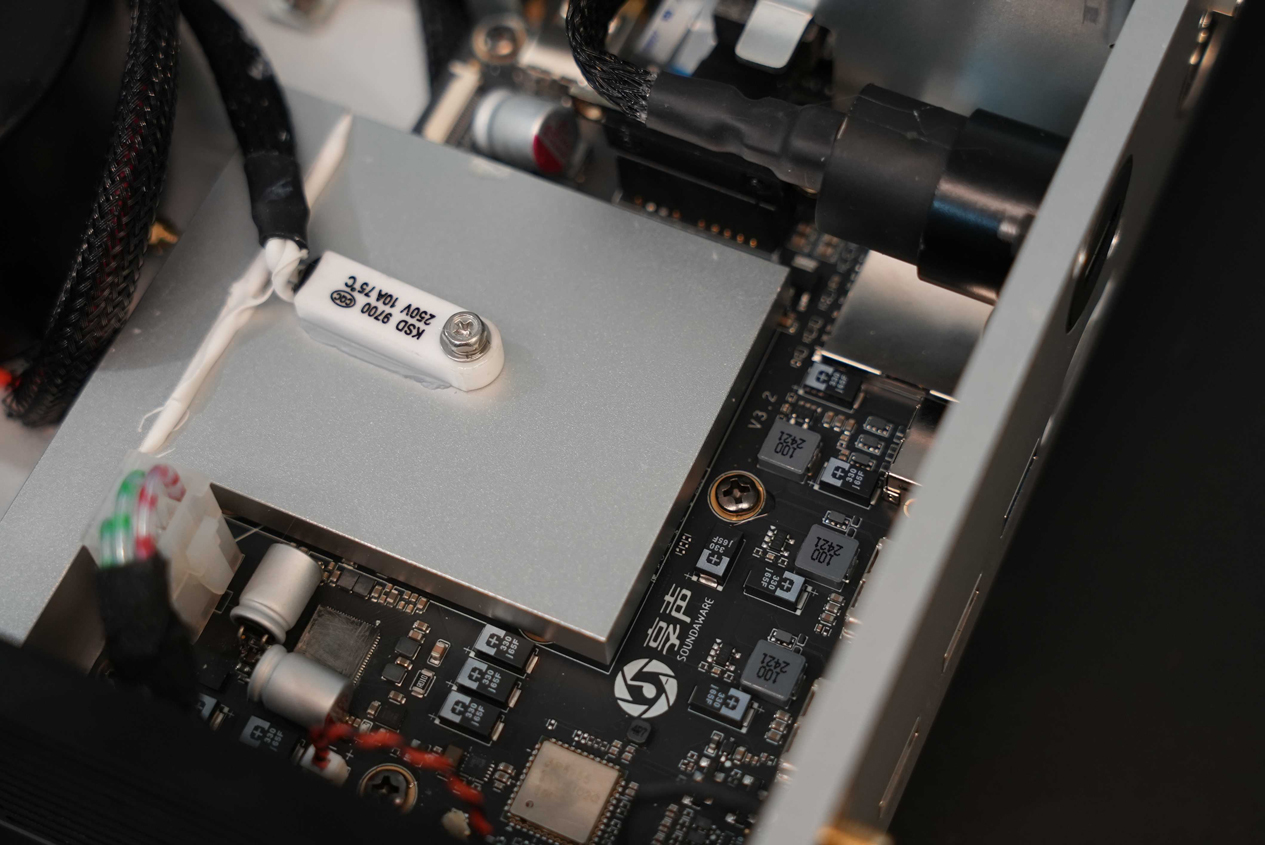

10-year maintenance-free silent X86 cooling system

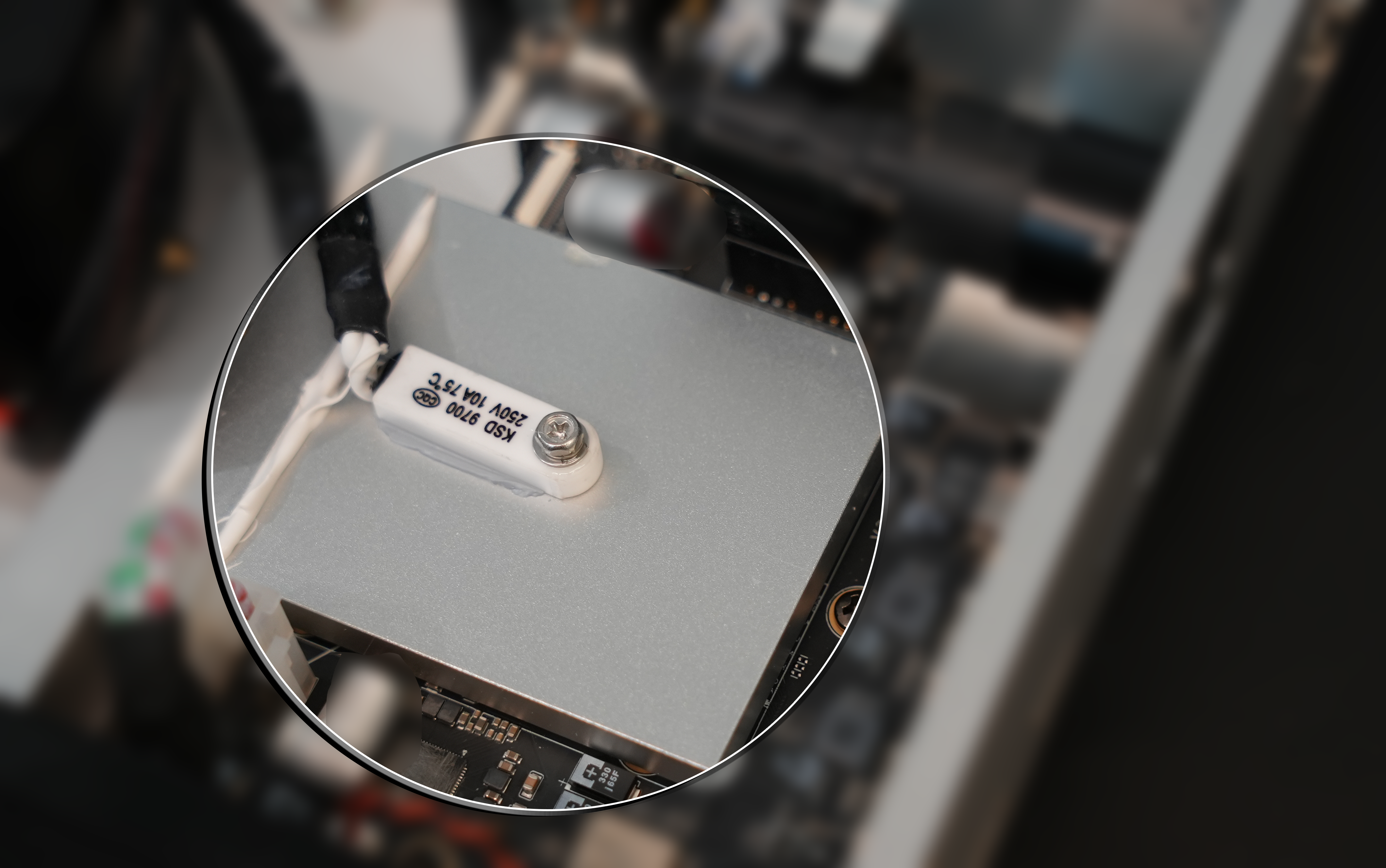

Since X86 motherboards are designed to have a lifespan of up to 10 years, but conventional thermal solutions typically only remain effective for about 5 years, they cannot meet our envisioned 10-year maintenance-free requirement. After extensive experimentation on the AM3 and D2 models, we have made a silent cooling system with a 10-year maintenance-free lifespan achievable. Thanks to the adhesive high-performance thermal system, the D1X demonstrates a qualitative improvement in all aspects compared to standard industry solutions.

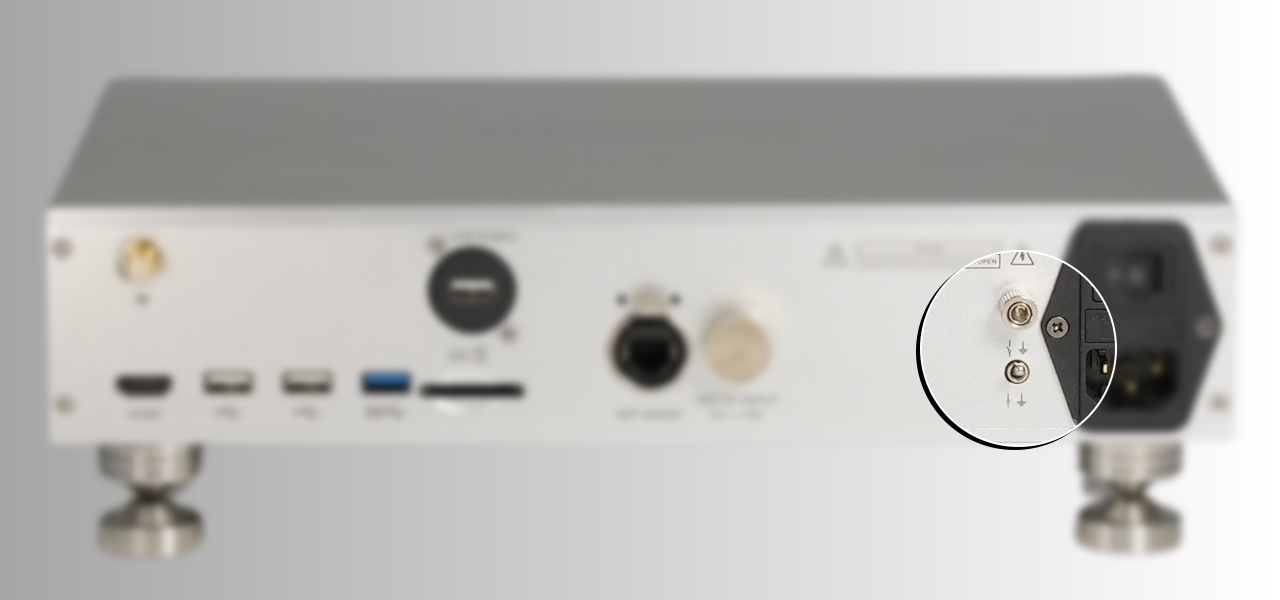

Independent grounding system with built-in high-performance filter:

Reference-level luxury materials

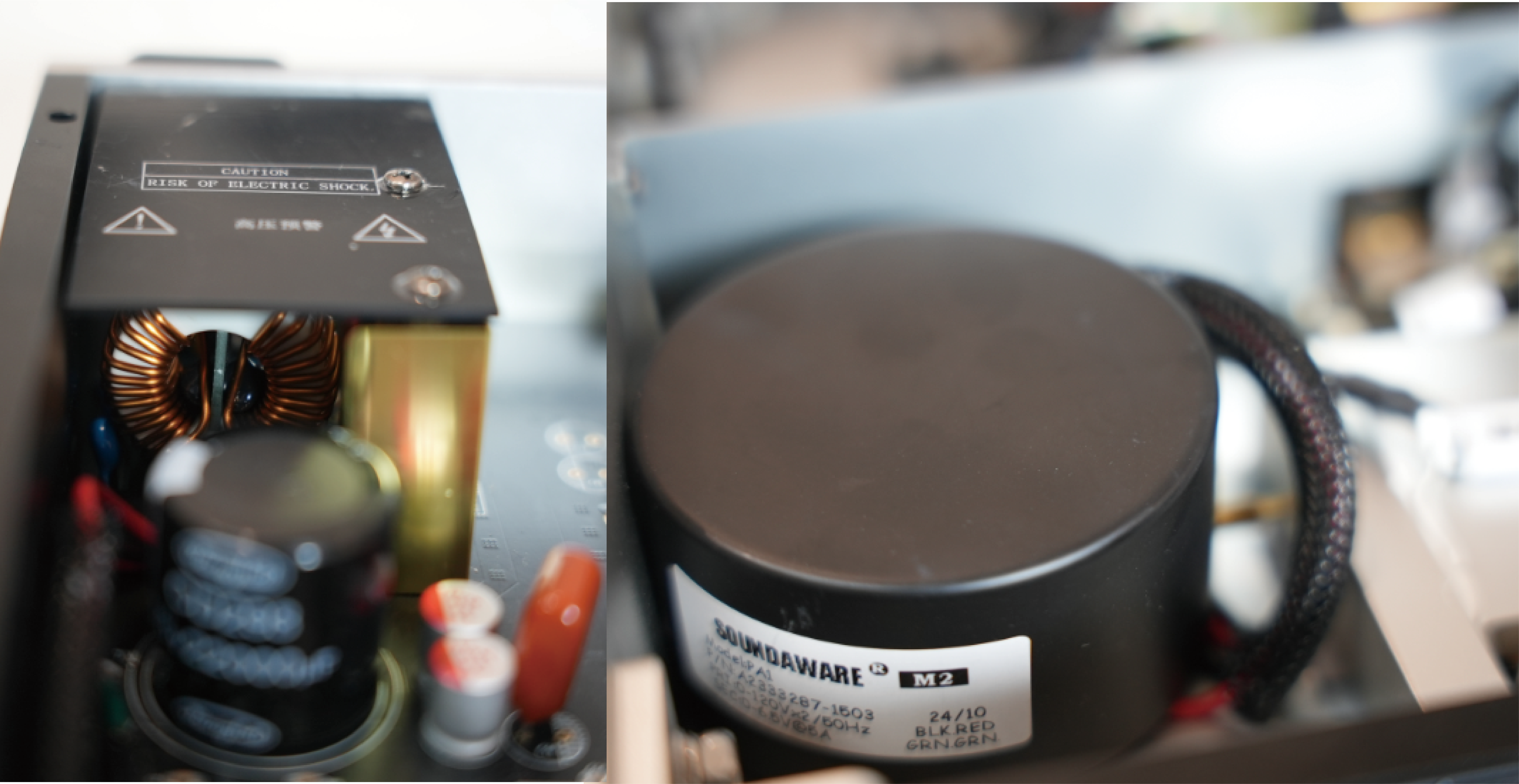

The D1X adopts the same grounding system and amorphous alloy high-performance filter as the D1. Its transformer features a custom A-core constructed from high-purity OFC, implementing a fully encapsulated and shielded reference-grade toroidal design. Furthermore, critical internal wiring utilizes custom 5U silver-plated cables. The D1X also integrates a series of reference-grade optimization solutions, including the same custom isolated vibration-damping feet system as the DAM1 15TH.

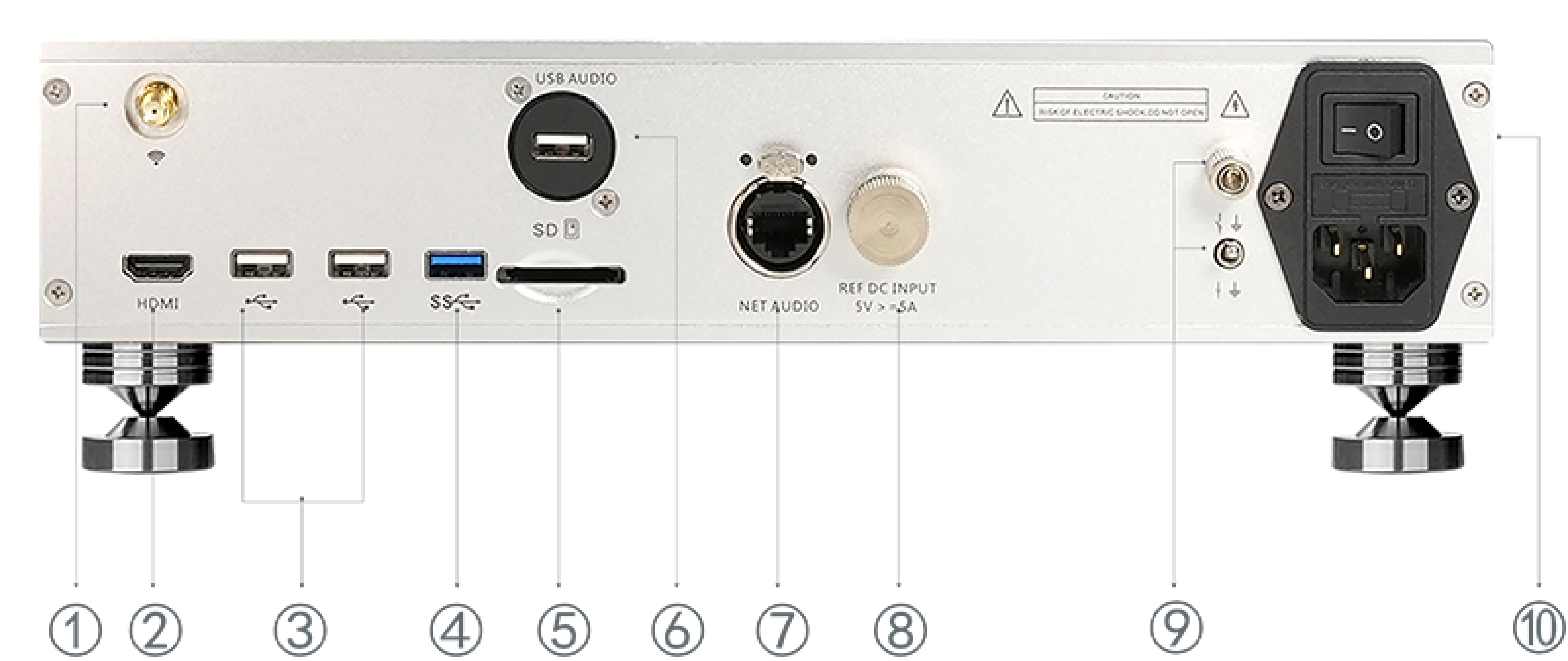

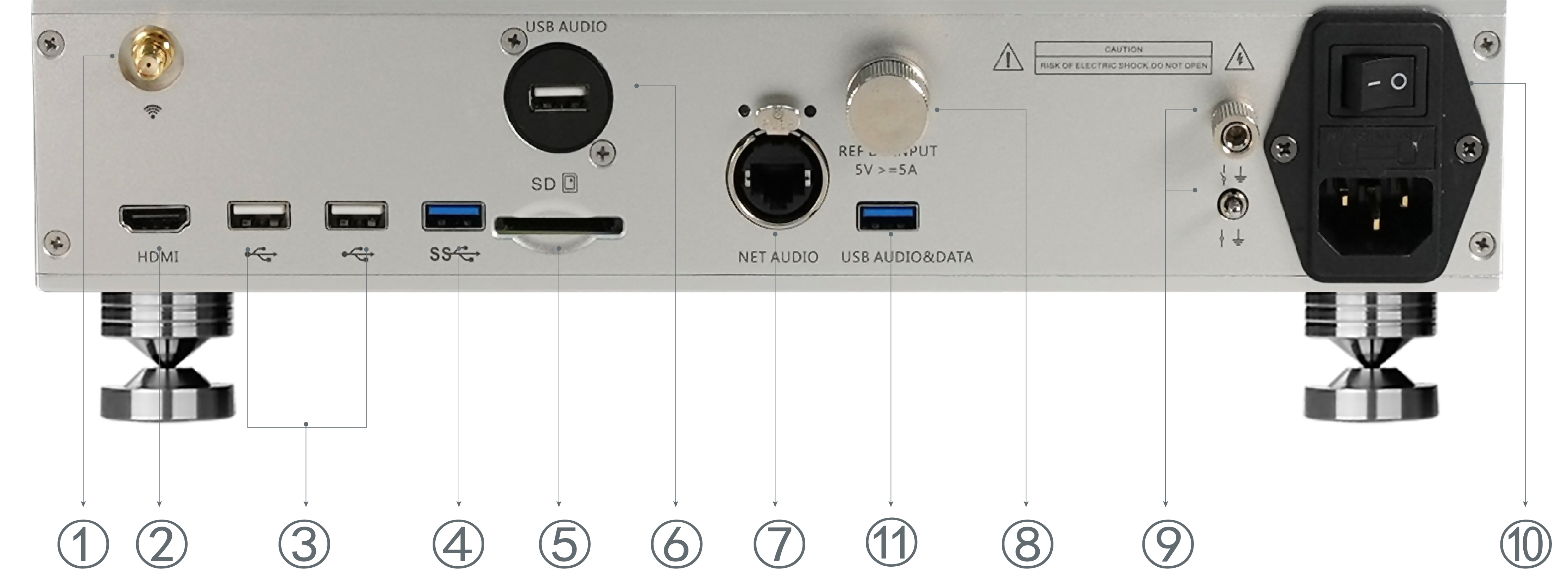

The interfaces and features of D1X

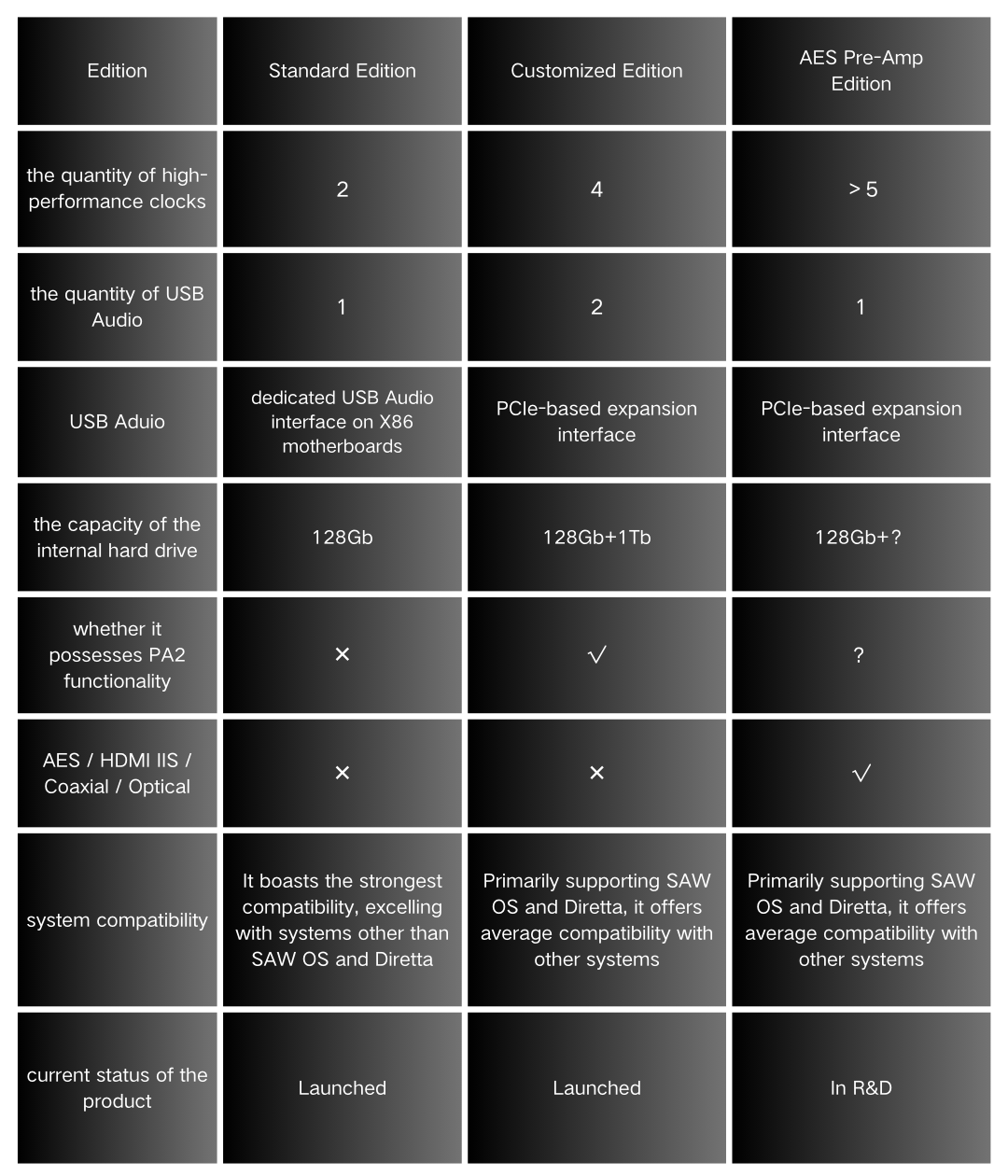

D1X standard edition
